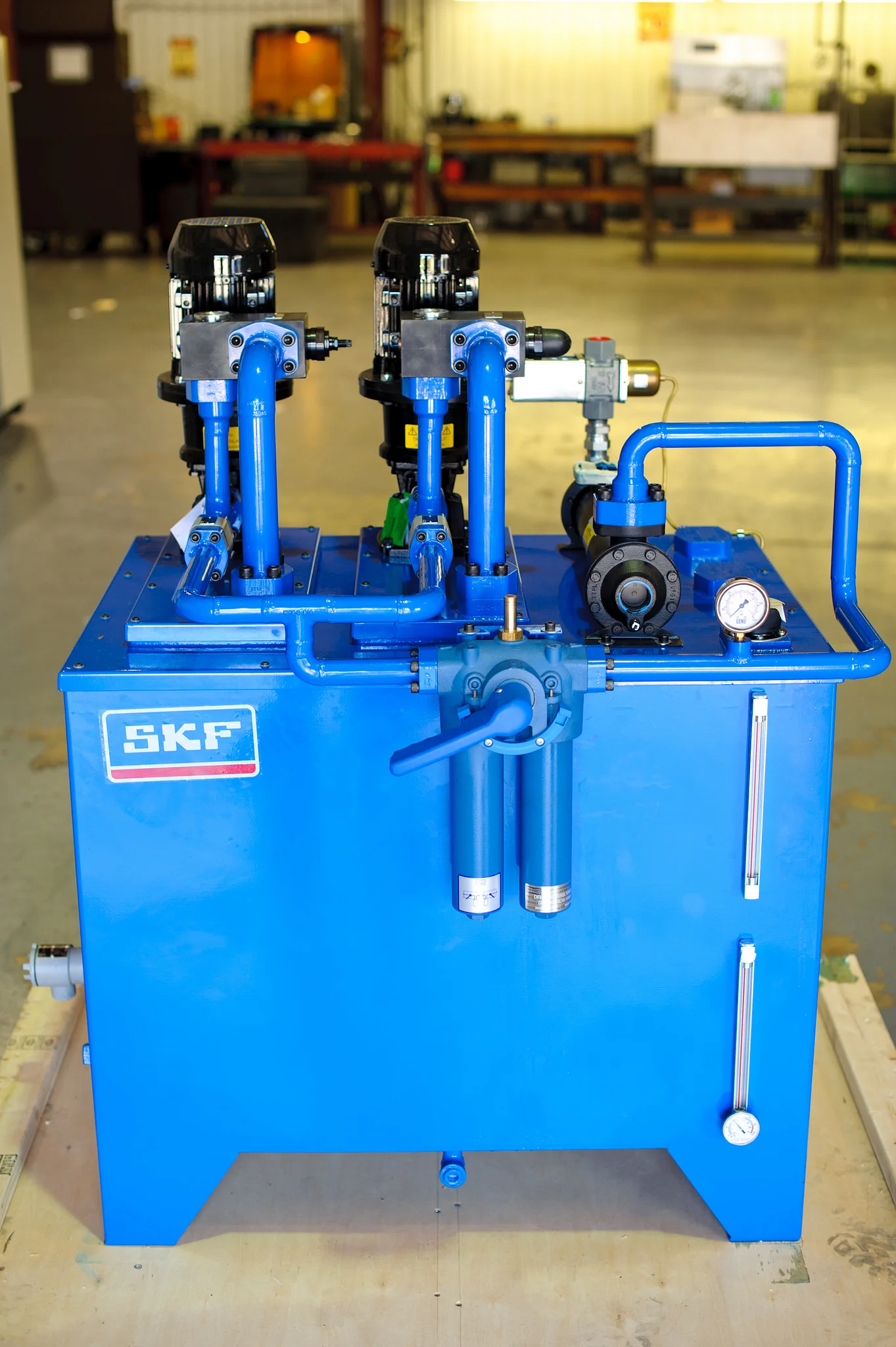

Safety Critical SKF CircOil Lubrication System for Critical, Hot Running, and Problematic Process Fans and Pumps
Main Features:
- (2) 460V, 60 Hz, 31 liter/minute Vertical Mount Gear Pump units
- (2) 1 – 12 bar adjustable Pressure Regulating Valves
- Oversized 400 liter Carbon Steel reservoir, allowing efficient convective and radiant heat transfer
- Low Level Switch
- Duplex 10 micron Oil Filter
- Pressure Gauge
- Reservoir Desiccant Air Breather
- Oil Level Sight Gauge with Temperature Gauge
- Shell and Tube water cooled Heat Exchanger – 15,000 BTU/Hour @ 20 F approach
- Water Modulating Valve
- All electrical components suitable for Class 1, Group C & D, Div 2
